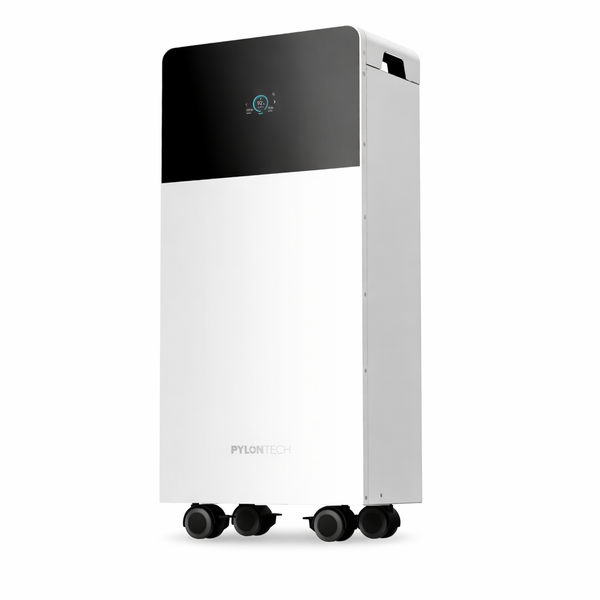

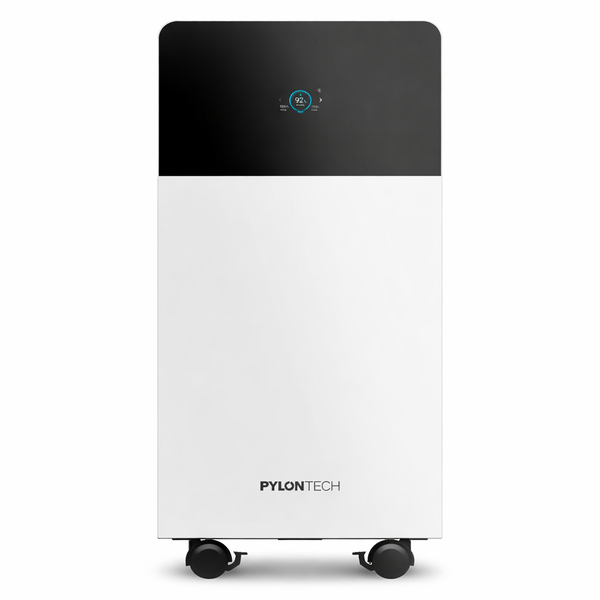

Pylontech Fidus Battery Plus – 16 kWh Residential & Commercial Energy Storage
Expected Delivery on - .
Pylontech Fidus Battery Plus – 16 kWh Residential & Commercial Energy Storage
PRODUCT DETAILS
Power your home or business with reliable, scalable, and safe energy storage.
The Pylontech Fidus Battery Plus is a premium lithium-iron-phosphate (LiFePO₄) energy storage solution designed for modern solar systems, backup power, and continuous energy resiliency. Engineered for both residential & commercial applications, this robust battery delivers long life, high performance, and smart monitoring features.
Key Highlights
-
High-Capacity Energy Storage: 16 kWh usable capacity at 51.2 V for homes, offices, and commercial solar systems.
-
100% Depth of Discharge (DoD): Maximize usable energy from each cycle without premature degradation.
-
Cyclic Durability: Up to 8,000+ life cycles — translates to years of reliable use.
-
Advanced LiFePO₄ Technology: Safer chemistry with excellent thermal stability.
-
Smart Connectivity: Built-in Wi-Fi, Bluetooth, and display screen for real-time monitoring (model dependent).
-
Modular & Scalable: Stackable up to 20 batteries per group and 6 strings for flexible energy growth.
-
Wide Environmental Tolerance: Performs in extreme conditions with operating range from –20 °C to 60 °C (discharge).
-
IP65 Protection (Outdoor Compatible): Dust- and water-resistant design (model dependent).
-
Certified Safety: IEC62619, IEC63056, UN38.3, EMC/CE standards.
Technical Specifications
| Feature | Specification |
|---|---|
| Nominal Voltage | 51.2 V |
| Usable Capacity | 16,076 Wh (16 kWh) |
| Depth of Discharge | 100 % |
| Continuous Charge/Discharge Current | 200 A |
| Peak Current (15 s) | 300 A |
| Weight | ~130 kg |
| Dimensions (W×D×H) | 435 × 240 × 900 mm |
| Communication | CAN, RS485 |
| Protection Rating | IP25 (weather-resistant enclosure) |
| Cycle Life | Up to 8,000 cycles @ 25 °C |
| Certifications | IEC62619, IEC63056, UN38.3, EMC/CE |
Why Choose Pylontech Fidus Battery Plus?
✔ Long-Term Reliability: Designed for over a decade of dependable service with extensive cycle life.
✔ Maximum Safety: LiFePO₄ chemistry and certified protections reduce thermal and fire risks.
✔ Smart & Connected: Monitor performance anytime with integrated Wi-Fi/Bluetooth where available.
✔ Scalable for Growth: Easy expansion for larger energy needs as your solar system evolves.
Perfect For
-
Residential solar storage systems
-
Commercial backup power supplies
-
Off-grid & hybrid inverter setups
-
Energy arbitrage & peak shaving applications
Compatibility
Compatible with most leading hybrid and solar inverter systems supporting 48 V battery banks — ideal for both grid-tied with backup and stand-alone off-grid configurations.
