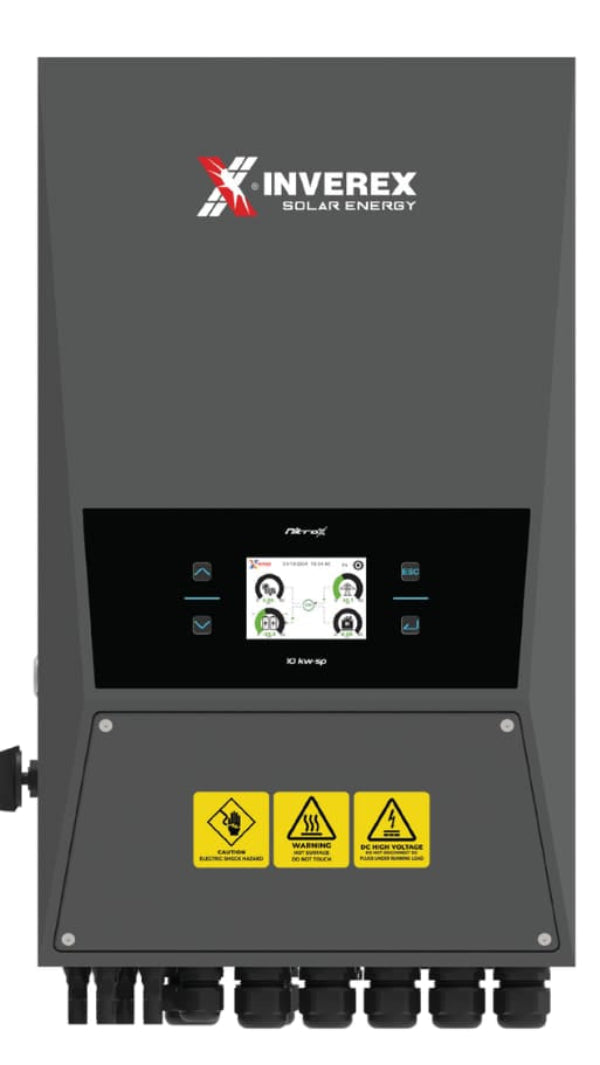

Inverex Nitrox 10KW-48V Hybrid Solar inverter (Single phase) PV 16000W
Expected Delivery on - .
Inverex Nitrox 10KW-48V Hybrid Solar inverter (Single phase) PV 16000W
PRODUCT DETAILS
NITROX HYBRID 10KW SP-5G Solar Inverter
The NITROX HYBRID 10KW SP-5G is a high-performance hybrid solar inverter featuring advanced MPPT technology and smart energy management. It supports both lithium-ion and lead-acid batteries and can handle a maximum PV input power of 16,000W. Designed for both off-grid and on-grid applications, this inverter is an excellent choice for residential and industrial use.
Key Features
- Hybrid Solar Inverter – Supports both grid-tied and off-grid functionality for flexible power solutions.
- High PV Input Power (16,000W) – Ensures maximum solar energy utilization with high power capacity.
- Advanced MPPT Technology – Delivers over 99% efficiency for optimal solar power tracking.
- Battery Compatibility – Works with both lead-acid and lithium-ion batteries.
- Smart Monitoring & Control – Supports GPRS, WIFI, Bluetooth, and 4G connectivity for remote monitoring.
- Surge Protection & Safety – TYPE II DC and AC surge protection for enhanced system security.
- IP65 Protection Rating – Durable design suitable for outdoor and harsh environments.
- Intelligent Cooling System – Efficient air cooling mechanism for optimal performance.
- High Efficiency (97.6%) – Maximizes energy conversion while minimizing losses.
- Multiple Communication Interfaces – Supports RS485, RS232, and CAN bus for seamless integration.
The NITROX HYBRID 10KW SP-5G is a reliable and smart energy solution, ideal for homes, offices, and industrial setups. Its hybrid design and high efficiency ensure energy independence and cost savings.

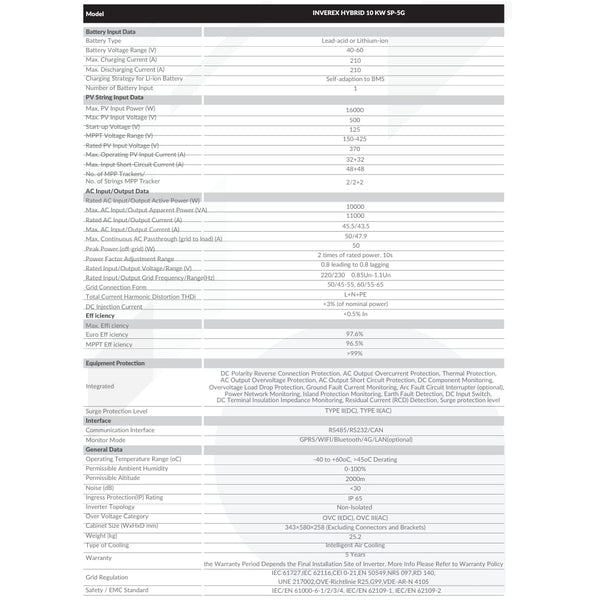

NITROX HYBRID 10KW SP-5G Specifications
| Category | Specifications |
|---|---|
| Battery Type | Lead-acid or Lithium-ion |
| Battery Voltage Range (V) | 40-60 |
| Max. Charging Current (A) | 210 |
| Max. Discharging Current (A) | 210 |
| Charging Strategy for Li-ion Battery | Self-adaption to BMS |
| Number of Battery Input | 1 |
| Max. PV Input Power (W) | 16000 |
| Max. PV Input Voltage (V) | 500 |
| Start-up Voltage (V) | 125 |
| MPPT Voltage Range (V) | 150-425 |
| Rated PV Input Voltage (V) | 370 |
| Max. Operating PV Input Current (A) | 32+32 |
| Max. Input Short-Circuit Current (A) | 48+48 |
| Rated AC Input/output Active Power (W) | 10000 |
| Max. AC Input/output Apparent Power (VA) | 11000 |
| Rated AC Input/output Current (A) | 50/47.9 |
| Max. AC Input/output Current (A) | 45.5/43.5 |
| Max. Continuous AC Passthrough (grid to load) (A) | 32+32 |
| Peak Power (off-grid) (W) | 2 times of rated power, 10s |
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging |
| Max. Efficiency | 97.6% |
| Euro Efficiency | 96.5% |
| MPPT Efficiency | >99% |
| Total Current Harmonic Distortion (THDi) | <3% (of nominal power) |
| DC Injection Current | <0.5% In |
| Surge Protection Level | TYPE II (DC), TYPE II (AC) |
| Grid Regulation | IEC 61727, IEC 62116, CEI 0-21, EN 50549, etc. |
| Operating Temperature (°C) | -40 to +60, >45°C derating |
| Permissible Ambient Humidity | 0-100% |
| Permissible Altitude | 2000m |
| Noise (dB) | <30 |
| Ingress Protection (IP) Rating | IP 65 |
| Inverter Topology | Non-Isolated |
| Over Voltage Category | OVC II (DC), OVC III (AC) |
| Cabinet Size (W x H x D mm) | 343×580×258 (Excluding Connectors and Brackets) |
| Cooling Type | Intelligent Air Cooling |
| Weight (kg) | 25.2 |
| Warranty | 5 Years (depends on installation site) |
| Monitor Mode | GPRS/WIFI/Bluetooth/4G/LAN (optional) |
| Communication Interface | RS485/RS232/CAN |
| Grid Connection Form | L+N+PE |
| Rated Input/output Voltage/Range (V) | 220/230 (0.85Un-1.1Un) |
| Rated Input/output Grid Frequency/Range (Hz) | 50/45-55, 60/55-65 |
